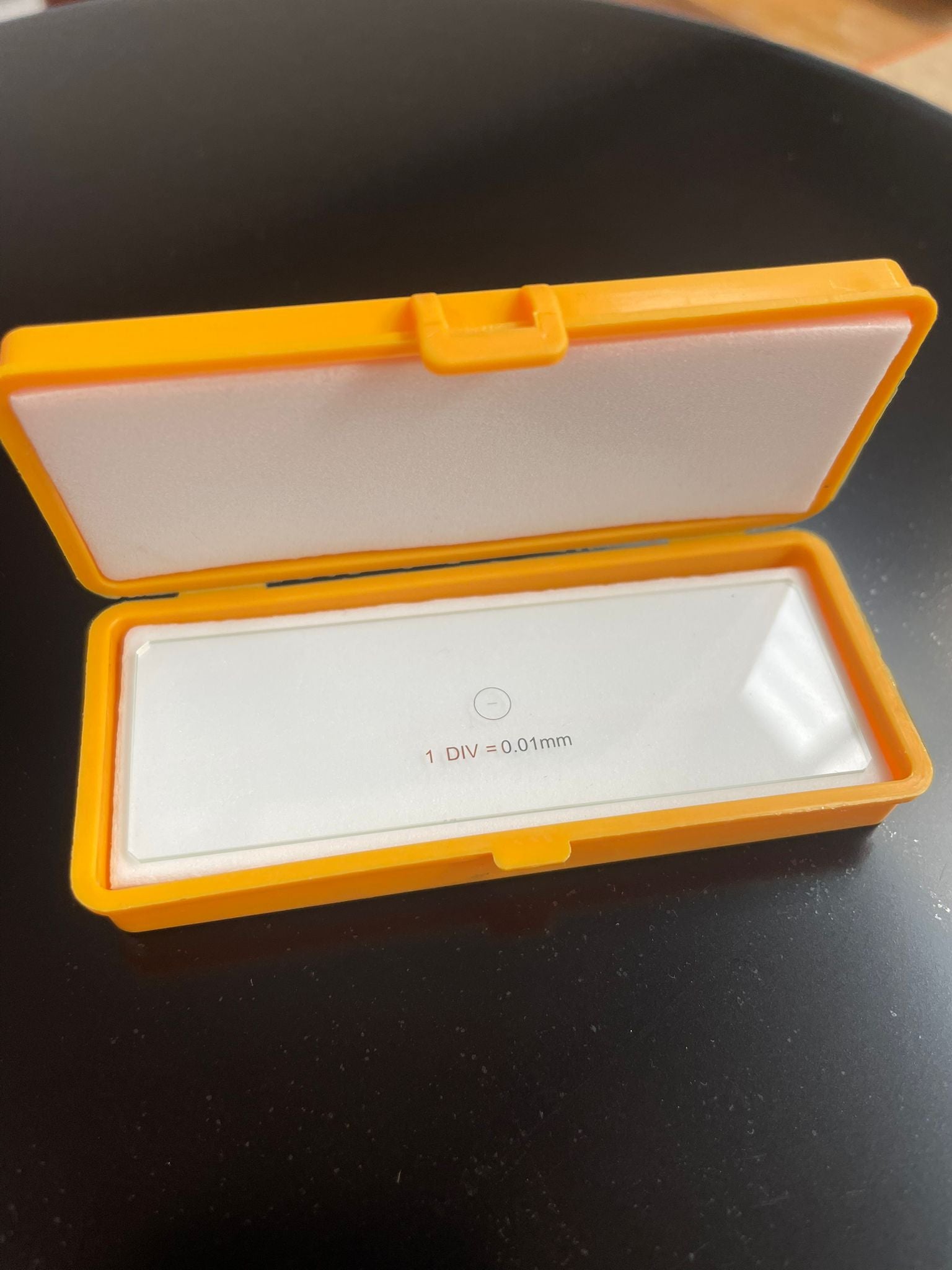

Reticle Ruler

This reticle ruler is used to measure groove depth under a microscope. Each division represents 0.01mm, giving you precise readings in the micron range. For cutting, to set your groove depth you measure your groove width. The ideal groove width is 50 microns (0.05mm), simply align the reticle over your grooves and count 5 divisions.

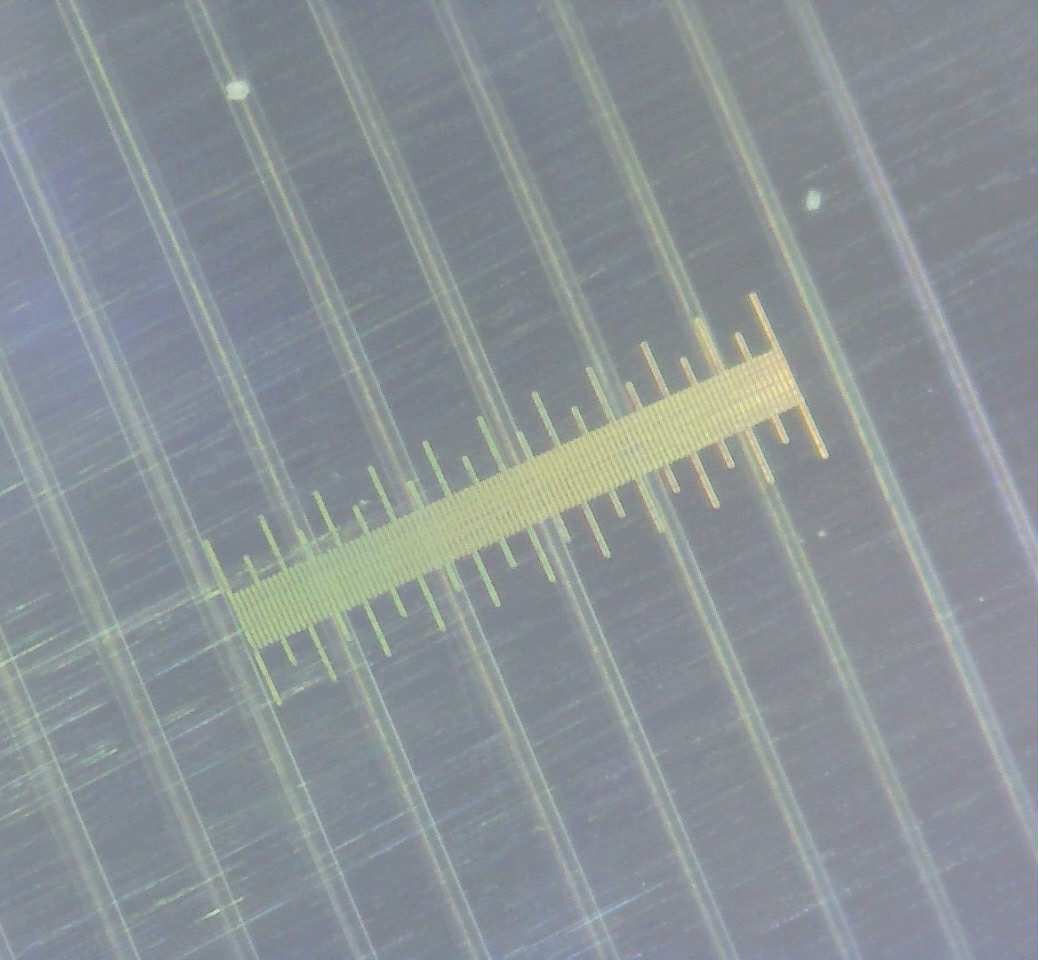

See the image for an example.
